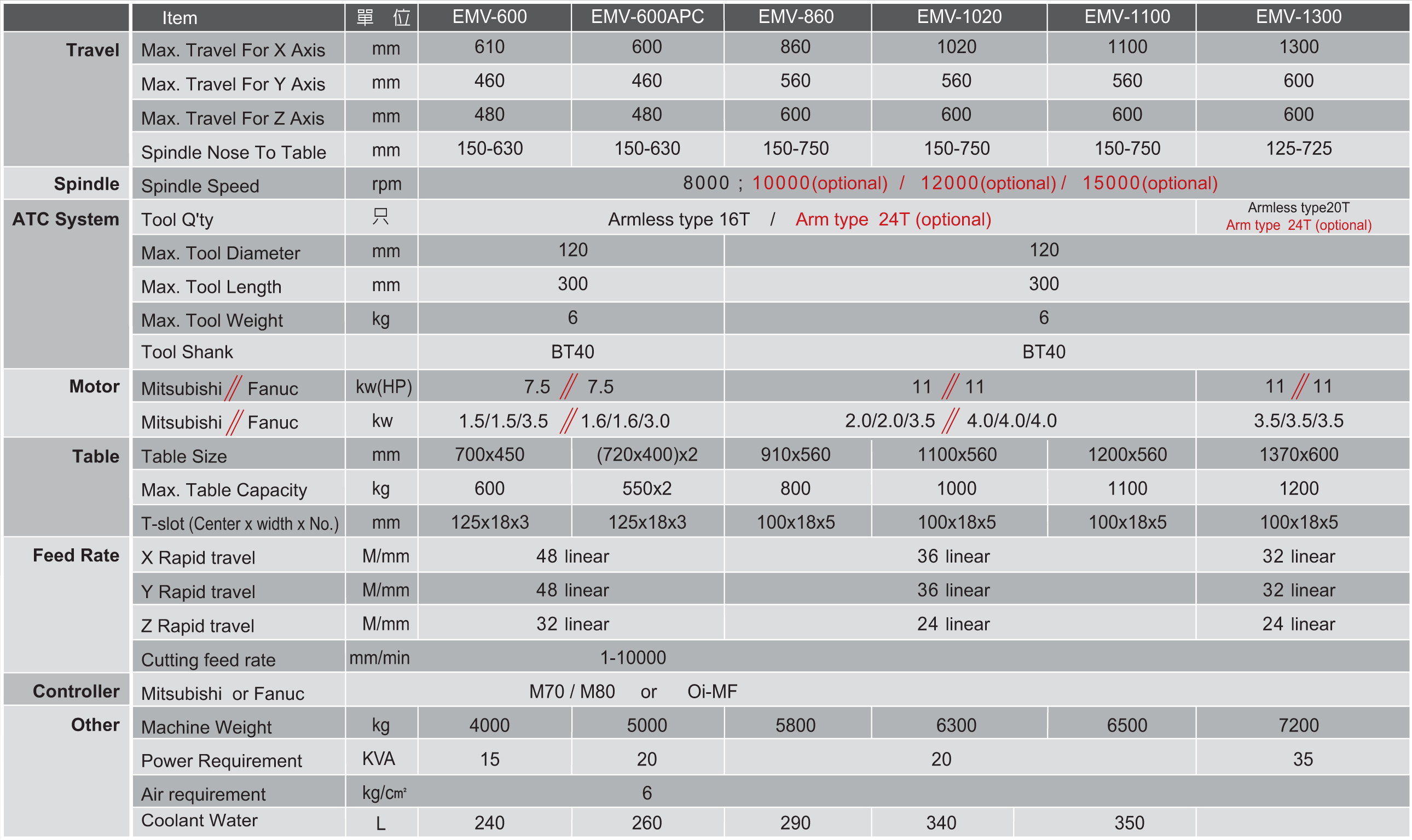

SPECIFICATIONS：
 |
NOTE：
The manufacturer reserves the right to modify the design, specifications,
mechanisms, etc., to improve the performances of the machine without notice.
All the specifications shown here are forreference only.
GENERAL FEATURES：
 |
 |
 |
 |
|||
| Convenient & simple and easy to use tool stand including tool-locked device | Washing down system | The floating draw bar mechanism is applied. The tool unclamping force will not transmit to the spindle bearing This extends the spindle bearing service life | The full travel strok is inspected and compensated by laser measurement. The motion accuracy can be ensured | |||
 |
||||||
| The Renishaw ball bar instrument calibrates the circularity and the geometrical accuracy to ensure precise three-dimensional motions | ||||||
OPTIONAL ACCESSORES：
 |
 |
 |
 |
|||
| 16 tools Armless type ATC Simplified magazine construction, safty, easy maintenance and trouble-free operation | Enlarge coolant tant capacity can take away generated chip heat quickly, Operator can remove the tank in front or a side to save the space | Convenient shelf for operator's equipment of work pieces | High efficient electrical control system to match CE standard ensure the safety for operator. The electrical box mounted with heat exchanger to constant temperature | |||
 |
 |
 |
 |
|||

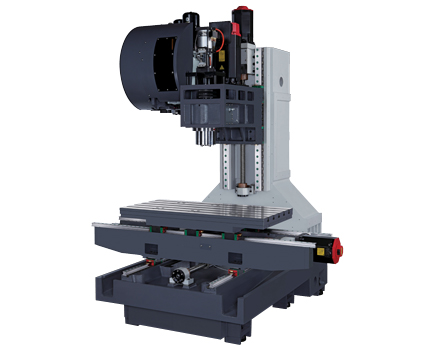

| High precision and premium quality Germany linear [optional] ways with wide blocks to resist wear. Ensure high accuracy,excellent rigidty | Pretension ssystem. Ensure high positioning accuracy and durability | Synchronous motion protection cover | A simple but efficient removal mechanism can easily convey the chips outside of the machine | |||
STANDARD ACCESSORIES：
|
1. Chip auger |
8. Port Air gun |
|
2. Full enclosed guard |
9. Z axis with Brake |
|
3. Auto lubrication system
8Port Air gun |
10. Portable flush gun |
|
4. Levelling block &scerws |
11. Rigid Tapping |
|
5. Tool box with tools |
12. Crossfed Ballscrew |
|
6. Work lamp |
13. Electric box heat exchanger |
|
7. Alam light |
14. Armless type ATC system |
