EQUIPTOP HITECH CORP

> Automatic (Digital Type)

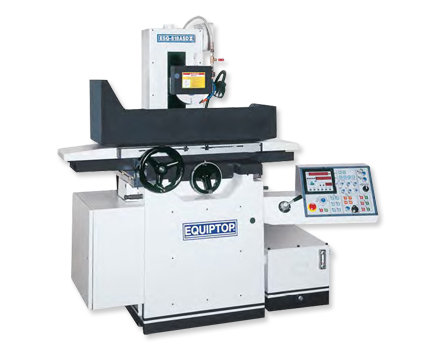

ESG-818ASDII

Specifications

機能規格：

SPECIFICATIONS：

CONTROL PANEL
	Vertical feed powered by double motors High efficiency AC motor for rapid up / down. Stepping motor for micro downfeed positioning and slow up / down. Quick digit output feedback by encoder.

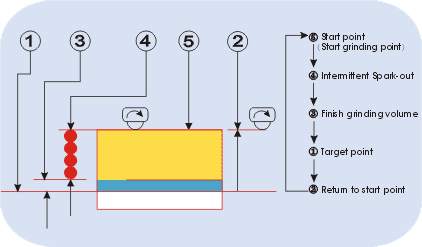

	Display for position of axis Y to show the present position of spindle. The digit display is for setting start point, rough grinding volume, start point for finish grinding(finish rginding volume), downfeed volume for finish grinding, target point, rise up point, intermittent spark-out, and spark-out.
	Cross transverse travel powered by DC servo motor. Available for step feed and continuous infeed grinding. The speed for dressing wheel is adjustable on the panel.

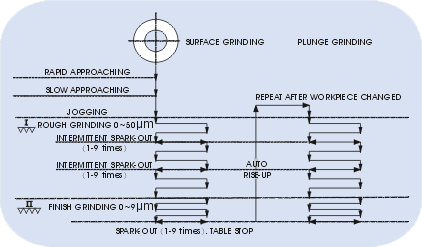

GRINDING PROCEDURES





1A:Longitudinal Hydraulic 2A: Longitudinal Hydraulic And Crossfeed Motorized 3A: Longitudinal Hydraulic, Crossfeed Motorized And Rapid Up/Down Motorized. ASD: Fully Automatic In 3 Axis (X. Y. Z.) With Stepping Motor For Downfeed, And AC Motor For Rapid Up/Down

MODEL		ESG-818ASDII
Table Size		203x460mm
Max.grinding length	Longitudinal	480mm
Max.grinding width	Crosswise	228mm
Max. distance from table surface to spindle centerline		460mm
Stadard magnetic chuck size		200x450mm
Longitudinal movement of table	Max. travel, hydraulic	480mm
	Max. travel, manual	510mm
	Max. travel,infinitely variable	60HZ,5-28m/min,50HZ,5-23m/min
Cross transverse travel	Auto transverse increment	1-10mm
	Max. auto transverse travel	235mm
	Max. manual transverse travel	250mm
	Handwheel revolution	5mm
	Handwheel graduation	0.02mm
Sheelhead vertical infeed	Automatic infeed	0.001~0.05mm
	Step feed (jog)	0.001mm
	Rapid travel, Approx	250mm/min
	Slow travel, Approx	6mm/min
	Handwheel revolution	1mm
	Handwheel graduation	0.005mm
Grinding spidle drive	Speed	60HZ,1750 R.P.M. / 50HZ,1450 R.P.M.
Grinding spidle drive	Power rating	2.0HP
Standard grinding wheel	Diameter	203MM
	Width	12.7mm(1/2"),MAX. 19mm(3/4")
	Bore	31.75mm
Hydraulic motor	Power rating	1HPx6P
Crossfeed motor	Power rating	40Wx6P
Elevating motor	Power rating	40Wx6P
Floor space	Total space required	1810x1285x1680mm
Weights	Net weight, Approx.	1205KGS
Weights	Gross weight, Approx.	1375KGS
Rated power, Approx (Standard power rating)		3.0HP
Packing dimensions	L x W x H	1890x1630x1930mm

NOTE:
The manufacturer reserves the right to modify the design, specifications, mechanisms, etc., to improve the performances of the machine without notice. All the specifications shown above are just for reference.

General Features：

1.HIGH PRECISION CARTRIDGE WHEEL SPINDLE:

Spindle supported by two precision angular ball bearings & one NN TYPE roller bearing and driven by V3 class motor that allow heavy leaded and high accurate grinding performance.

2.HIGH RIGID CASTING CONSTRUCTION:

The saddle rests on precision hand-scraped double V ways, and the table rests on precision hand-scraped V and flat ways which coated with "TURCITE-B". These guide ways are equipped with auto lubrication to resist wear of guide ways, plus lasting accuracy and damping.

3 AUTO LUBE SYSTEM:

Automatic lubrication system is applied as standard to ensure sufficient lubrication at lead-screws and guide-ways for more longevity.

Precision Spindle (for 614~818)

Saddle and Table

Patent double-motor system for vertical up / down. Ac motor (rapid) / Stepping motor (slow auto downfeed)

Auto Lubrication System

Table Hydraulic TravelAdjusting

Cross slice way

OPTIONAL ACCESSORES：

Electro Magnetic Chuck

Inclinable Permanent Magnetic Chuck

Swivel Wheel Guard

Frequency Changer

Coolant System With Manual Paper Feeding Device

Auto Paper Feeding Device With Magnetic Separator

Coolant System

Dust Collector

Screw Type Parallel Dressing Attachment

Concave Convex Forming Dresser

Work Licht(Quartz)

Splash Guard

Spare Wheel Flange

Manual Parallel Dresser

Chuck Control With Demagnetizer

Precision Vice

Punch Former

Balancing Stand(Double Line)

Roller Type Balancing Stand

Micro Crossfeed For 618/818 Series

Ratchet Type Electro Parallel Dresser (10/12/16 Series)

Digital Readout

Permanent Magnetic Chuck

Manual Pulse Generator For ASDII Type

Coolant System With Magnetic

Coolant And Dust Unit

STANDARD ACCESSORIES：

1. Tool box with tools	6. Wheel flange
2. Wheel extract screw & nut	7. Touch-up paint
3. Balancing arbor	8. Auto lubrication system
4. Levelling screw with blocks	9. Diamond dresser
5. Grinding Wheel	10. Crossfed Ballscrew
