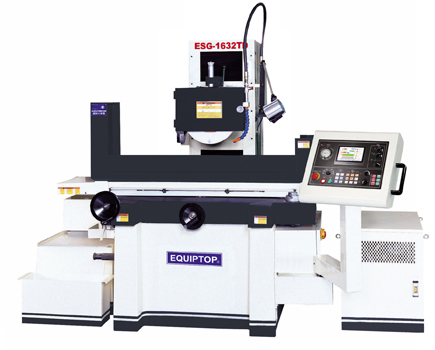

ESG-1632TD NC/ADC

Specifications

機能規格：

SPECIFICATIONS：

Model		Unit	ESG-1632TD NC/ADC
Table Size	L x W	mm	406x813
Max.grinding length	Longitudinal	mm	813
Max.grinding width	Crosswise	mm	410
Table loading	Max. loading	KGS	420
Max. distance from table surface to spindle centerline		mm	Standard column 630 Optional column 720
Stadard magnetic chuck size		mm	400x800
Longitudinal movement of table	Max. travel, hydraulic	mm	890
	Max. travel, manual	mm	930
	Max.travel,infinitelyvariable	m/min	60HZ, 5-25m/min 50HZ, 5-20m/min
Cross transverse travel	Auto transverse increment	mm	0.1-25
	Auto. Constant Feeding Speed	mm/min	20-320
	Max. auto transverse travel	mm	430
	Max. manual transverse travel	mm	460
	Handwheel per Revolution	mm	5
	Handwheel per Graduation	mm	0.02
Wheelhead vertical infeed	Automaticinfeed	mm	0.001-0.1
	Step feed (jog)	mm	0.001
	Rapid travel, Approx	mm/min	400
	Slow travel, Approx	mm/min	6
Grinding spidle drive	Speed	RPM	50HZ/60HZ, 1450/1750 R.P.M.
Grinding spidle drive	Power rating	HP	Standard 5 Optional 7.5
Standard grinding wheel	Diameter	mm	355
	Width	mm	50
	Bore	mm	127
Hydraulic motor	Power rating	HP	3.0
Crossfeed motor	Power rating	W	750
Elevating motor	Power rating	W	1
Floor space	Total space required	mm	3930x3510x1943
Weights	Net weight, Approx.	KGS	3400
Weights	Gross weight, Approx.	KGS	4000
Coolant system	Power rating	HP	1/8
Rated power, Approx	Power rating	HP	Standard 10.5 Optional 13
Packing dimensions	LxWxH	mm	2930x2290x2240

NOTE:
The manufacturer reserves the right to modify the design, specifications, mechanisms, etc., to improve the performances of the machine without notice. All the specifications shown above are just for reference.

An inretface for humanistic Technology：

1.COLUMN:

Enlarged honeycomb ribbed column especially suitable for heavy duty grinding.

2.CROSS FEED:

Cross feed ball screw is driven by AC servomotor, there are two speed rates-rough grinding speed and dinish grinding speed, provide high efficiency.

3.HIGH ANTI-WEAR GUIDE-WAYS:

The saddle rests on precision hand scraped double V ways, and the table rests on precision hand scraped V and flat ways which coated with “TURCITE-B” These guide ways are equipped with auto lubrication to resist wear of guide ways, and provide stable movement and durable accuracy.

4.OPERATION PANEL:

CrossfeedMan-machine 7.2” touch color screen equipped PLC digital control and EQUIPTOP exclusive pictures mode working system, easy to learn and operate.

Planted elevating transmission mechanisim

indexible table handwheelTable travel adjustment, provide built-in-type(hidden) proximity switch, features safe & easy operation (for 1020 series)

Enlarge double V base. These guide ways are equipped with auto lubrication to resist wear of guide ways, plus lasting accuracy & damping

1228-2040 models table speed control

Honeycomb-ribbed column

Starting picture page

Gringing Condition Input

Machine I/O Monitoring

Digit setting for grinding

Alarm message

System Data

OPTIONAL ACCESSORES：

Electro Magnetic Chuck

Dynamic Balancer

Frequency Changer

Digital Readout

Auto Paper Feeding Device With Magnetic Separator

Coolant System With Magnetic SeparatorSeparator

Work Lamp

Wheel Flange

Balancing Stand(Doubleline)

Roller Type Balancing Stand

Chuck Control With Demagnetizer

Precision Vice

Punch Former

Manual Pulse Generator for Y axis, Z axis (Optional)

Dressing Attachment

STANDARD ACCESSORIES：

1. Wheel Extrace Screw & Nut	6. Tool Box With Tools
2. Balancing	7. Auto Lubrication System
3. Levelling Screw With Blocks	8. Diamond Dresser
4. Wheel Flange	9. Touch-up Paint
5. Grinding Wheel	10. Crossfed Ballscrew
