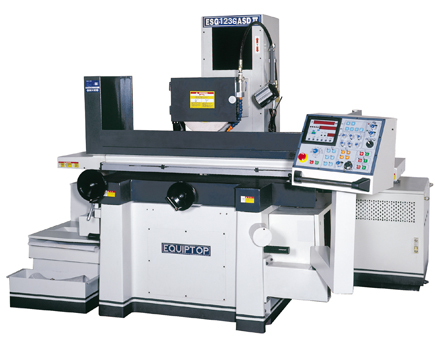

ESG-1236ASDII

機能規格:

SPECIFICATIONS



CONTROL PANEL





Vertical feed powered by double motors High efficiency AC motor for rapid up / down. Stepping motor for micro downfeed positioning and slow up / down. Quick digit output feedback by encoder.

Display for position of axis Y to show the present position of spindle. The digit display is for setting start point, rough grinding volume, start point for finish grinding(finish rginding volume), downfeed volume for finish grinding, target point, rise up point, intermittent spark-out, and spark-out.

Cross transverse travel powered by DC servo motor. Available for step feed and continuous infeed grinding. The speed for dressing wheel is adjustable on the panel.

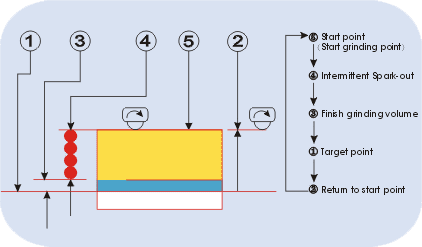

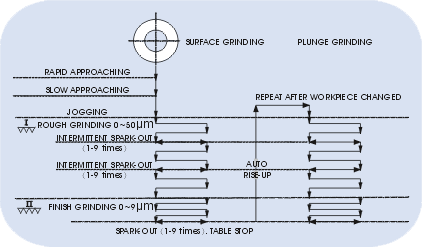

GRINDING PROCEDURES











MODEL

ESG-1236ASDII

Table Size

305x915mm

Max.grinding length

Longitudinal

915mm

Max.grinding width

Crosswise

330mm

Max. distance from table surface to spindle centerline

Standard column:630mm; Optional high column:720mm

Stadard magnetic chuck size

300x900mm

Longitudinal movement of table

Max. travel, hydraulic

960mm

Max. travel, manual

1000mm

Max. travel,infinitely variable

60HZ,5-25m/min,50HZ,5-20m/min

Cross transverse travel

Auto transverse increment

1-25mm

Auto constant feeding speed

20-320mm/min

Max. auto transverse travel

350mm

Max. manual transverse travel

380mm

Handwheel revolution

5mm

Handwheel graduation

0.02mm

Sheelhead vertical infeed

Automatic infeed

0.001-0.05mm

Step feed (jog)

0.001mm

Rapid travel, Approx

150mm/min

Slow travel, Approx

6mm/min

Handwheel revolution

1mm

Handwheel graduation

0.005mm

Grinding spidle drive

Speed

60HZ,1750R.P.M.;50HZ,1450R.P.M.

Power rating

Standard:5HP; Optional:7 1/2HP,10HP

Standard grinding wheel

Diameter

355mm

Width

50mm

Bore

127mm

Hydraulic motor

Power rating

3.0HPx6P

Crossfeed motor

Power rating

80Wx6P

Elevating motor

Power rating

1/4Wx6P

Floor space

Total space required

3550x1970x2050mm

Weights

Net weight, Approx.

3330KGS

Gross weight, Approx.

3700KGS

Rated power, Approx (Standard power rating)

8 1/2HP(Spindle motor:5HP),11HP(Spindle motor:7.5HP),13 1/2HP(Spindle motor:10HP)

Packing dimensions

L x W x H

3000x2290x2220mm

NOTE:
The manufacturer reserves the right to modify the design, specifications, mechanisms, etc., to improve the performances of the machine without notice. All the specifications shown above are just for reference.





General Features

1.COLUMN:

Enlarged, honeycomb-ribbed column especially suitable for heavy duty grinding.



2.CONSTRUCTION:

Construction of table, saddle and base is casted with high grade iron, strongly ribbed.



3.SPINDLE:

Enlarged spindle set is supported by four preloaded precision angular contact Ball bearings for heavy duty.



4.SLIDEWAYS:

Vertical, cross (double vess) and longitudinal (one vee &one flat) slideways are coated with Turcite-B, provides stable movement and durable accuracy.



5.AUTOMATIC CONTINUOUS LUBRICATION SYSTEM:

All slideways and screws are fully oiled by automatic continuous lubrication system to eliminate wears on slideways & screws.



6.CROSS FEED:

Ball screw for cross travel, powered by DC servo motor.



7.PROXIMITY SWITCH:

Provide built-in-type (hidden) proximity switch, features safe and easy operation.



8.Table speed control:

Presettable hydraulic table speed control allows operator to pre-set speed rate, enable to get same speed rate when engaging hydraulic table every time.











Honeycomb-ribbed Column

Enlarged Spindle Set For 1020, 1224 Series

Ballscrew For Crossfeed Movement

Elevating Transmission System

Electrical Box (ASDII)

Easily-adjustable Hidden Proximity Switch (Long And Cross)

Table Speed Control For 1020, 1224 Series

Auto lubrication system





OPTIONAL ACCESSORES



Electro Magnetic Chuck



Inclinable Permanent Magnetic Chuck



Swivel Wheel Guard



Frequency Changer



Coolant System With Manual Paper Feeding Device

Auto Paper Feeding Device With Magnetic Separator

Coolant System

Dust Collector

Screw Type Parallel Dressing Attachment

Concave Convex Forming Dresser

Work Licht(Quartz)

Splash Guard

Spare Wheel Flange

Manual Parallel Dresser

Chuck Control With Demagnetizer

Precision Vice

Punch Former

Balancing Stand(Double Line)

Roller Type Balancing Stand

Micro Crossfeed For 618/818 Series

Ratchet Type Electro Parallel Dresser (10/12/16 Series)

Digital Readout

Permanent Magnetic Chuck

Manual Pulse Generator For ASDII Type

Coolant System With Magnetic

Coolant And Dust Unit

Full Guarded Splash Guard (10/12/16 Series)

Electro Parallel Dressing Attachment

Micro Crossfeed For 10/12/16 Series

Micro Down Feed For 10/12/16 Series



STANDARD ACCESSORIES

1. Tool box with tools

7. Touch-up paint

2. Wheel extract screw & nut

8. Auto lubrication system

3. Balancing arbor

9. Diamond dresser

4. Levelling screw with blocks

10. Crossfed Ballscrew

5. Grinding Wheel

11.Sweeping Plate

6. Wheel flange

12.Splash Guard
