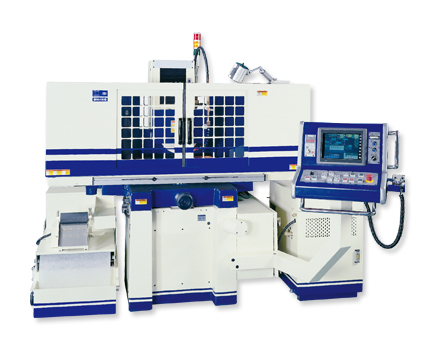

CNC500_b.jpg)

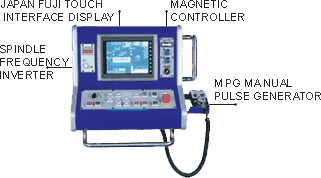

CONTROL PANEL：
|
|
|
|
|
|
|
|
||||
|
|
|
|
||
|

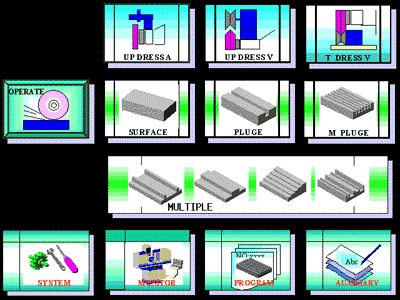

GRINDING PROCEDURES： |
|
|
||
|
|
|
|
||
CNC500_eng.files/image001.gif)
CNC500_eng.files/image002.gif)
SPECIFICATIONS：
|
MODEL |
ESG-500CNC |
|
|
Table Size |
245x508mm |
|
|
Longitudinal Movement Speed |
0.5~25M/min |
|
|
Cross
Transverse Travel |
Min. Setting Unit |
0.001mm |
|
MPG |
Handwheel graduation x 1, 0.001mm x 10, 0.01mm x 100, 0.1mm |
|
|
Rapid Speed |
1000mm/min |
|
|
Wheelfeed Vertical Infeed |
Min. Setting Unit |
0.001mm |
|
MPG |
Handwheel graduation0.001mm x 1, 0.001mm x 10, 0.001mm x 100 |
|
|
Rapid Speed |
750mm/min |
|
|
Spindle Drive |
Power Rating |
3HP/2.2KW |
|
Speed |
50HZ,2850 R.P.M.;60HZ,3450 R.P.M. |
|
|
Standard Grinding Wheel |
Diameter |
ø 203mm |
|
Width |
Standard 9mm Max. 25mm |
|
|
Bore |
ø 31.75mm |
|
|
Hydraulic Motor |
2.0HP |
|
|
Floor Space |
2400x1650x1850mm |
|
NOTE：
The manufacturer reserves the right to modify the design, specifications,
mechanisms, etc., to improve the performances of the machine without notice.
All the specifications shown above are just for reference.
GENERAL FEATURES：
|
1.STRUCTURE: Remote manual pulse generator for vertical & crossfeed C3 class vertical & crossfeed
ballscrew
Spindle frequency inverter Verical & crossfeed servo motor control system, man-manchine interface w/10.4" color tft
display, plc w/nc mode control Longitudinal movement servo hydraulic control system Unique longitudinal hydraulic circuitry system is
available for slow movement from either direction ( suitable for big downfeed at slow table movement ) 2.CONTROL SYSTEM: High industrial
class plc control system w/nc program mode 3.SOFTWARE
SYSTEM: Man-machone conversational diagram data input working system Easy to learn and
operate Learn it in 4
hours grinding set in 10 minutes for new workpiece 4.STANDARD
FUNCTION: Surface grinding
(cross step feed constant feed, and 3 steps downed) Plunge grinding (2
steps downed) Groove bottom
surface grinding (cross step feed & constant feed, 2 steps downed) Multi-plunge
grinding system suitable for un-equidepth, concave,
convex, and trapezoidal plunge grinding (only by cbn
forming wheel, forming device, or on-table wheel derssing
attachment) 5.DURING
GRINDING: The infeed amount is adjustable any time The grinding wheel
could be forced rise up Can be stopped and
proceeded for workpiece checking Can be forced for
wheel dressing or dressing setting change 6.OPTIONAL ACCESSORIES: Overhead wheel
auto dressing & auto compensation system On-table wheel
auto dressing & auto compensation system The fourth axis
scale plate and special clamper for workpiece |
